Overview

Silicon Library (SLI) HDMI 2.0 TX IP solution, which consists of analog PHY IP and digital LINK IP, is compliant with HDMI 2.0b standard. PHY IP is provided as a hard macro while LINK IP is provided as a soft macro including synthesizable RTL code. SLI HDMI 2.0 TX PHY IP consists of three data channels, one clock channel and a clock multiplier PLL, and it supports the data rate up to 6Gbps per channel. LINK IP includes HDCP compliant with 2.2 / 1.4. The combination of SLI’s PHY IP and LINK IP ensures that customers easily and securely implement HDMI interface to SoCs.

PHY Features

• HDMI 2.0b standard compliant physical layer
• Up to 6Gbps/ch for 4K2K 60fps
• Calibration sequence of on-chip termination resistor impedance
• Programmable Vdiff / Pre-emphasis levels
• Programmable analog characteristics
• Test / Debug modes, loopback test

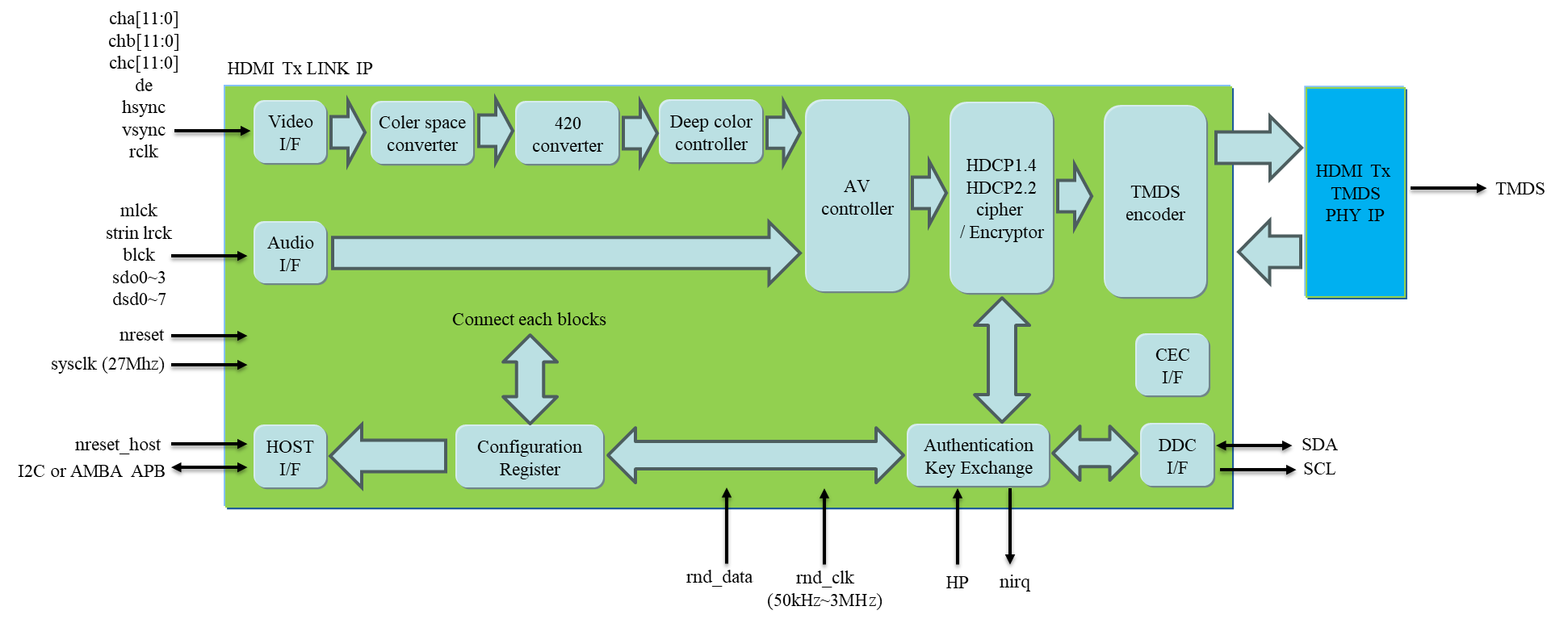

LINK Features

• HDMI 2.0b standard compliant LINK layer
• HDCP compliant with 2.2 / 1.4
• Color space conversion
• Supports deep colors
• Audio interface

Availability

This PHY IP is available as a silicon proven IP in TSMC12nm. Please download the product brief or contact sales for more detailed information. SLI will accept porting requests from customers.
