Testing Service

We will assist you in product evaluation and failure analysis. The following tests can be performed.

• HDMI2.0b TX : Compliance Test
• HDMI1.4b : Compliance Test
• DP1.4a/eDP1.4b : Compliance Test
• MIPI DPHY: Conformance Test
• SD UHS-II /III PHY : Compliance Test
• LVDS : Conformance Test based on Datasheet
• others

Characterization

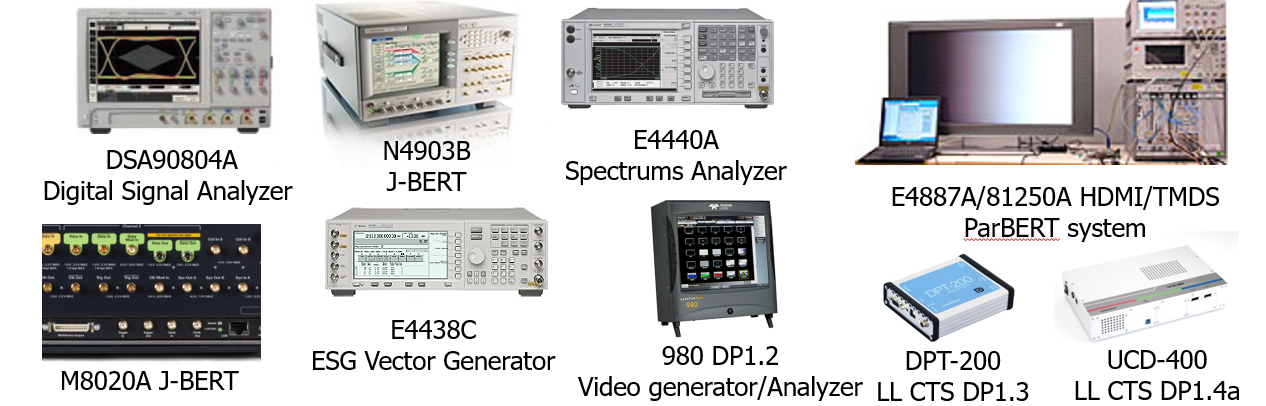

• 1 DSA90804A Infiniium Digital Signal Analyzer – 13GHz 20/40 GSa/s 4 Ch
• 2 M8020A/N4903B J-BERT high-performance serial BERT 16Gb/s complete jitter tolerance
• 3 E4438C 250kHz-4.0GHz ESG Vector Generator
• 4 E4887A/81250A HDMI/TMDS ParBERT system
• 5 Protocol Analyzer 980 Base UNIT for DP 1.2
• 6 LL CTS Generator & Analyzer UCD-400 for DP1.4a
• 7 LL CTS Source Device DPT-200 for DP1.3
• 8 E4440A 3Hz-26.5GHz PSA Series Spectrums Analyzer

Peltier Device Cooler　(-40℃ to 125℃(150℃))
